typora中如何使用markdown写图标、思维导图、饼图、时序图等
Typora supports some Markdown extensions for diagrams, once they are enabled from preference panel.
When exporting as HTML, PDF, epub, docx, those rendered diagrams will also be included, but diagrams features are not supported when exporting markdown into other file formats in current version. Besides, you should also notice that diagrams is not supported by standard Markdown, CommonMark or GFM. Therefore, we still recommend you to insert an image of these diagrams instead of write them in Markdown directly.

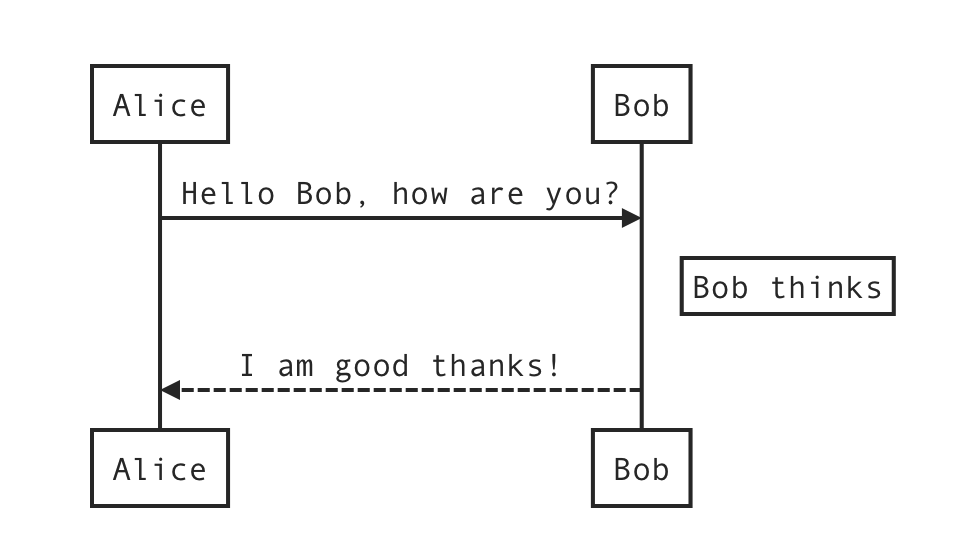

Sequence Diagrams
This feature uses js-sequence, which turns the following code block into a rendered diagram:
“`sequence
Alice->Bob: Hello Bob, how are you?
Note right of Bob: Bob thinks
Bob–>Alice: I am good thanks!
“`
For more details, please see this syntax explanation.

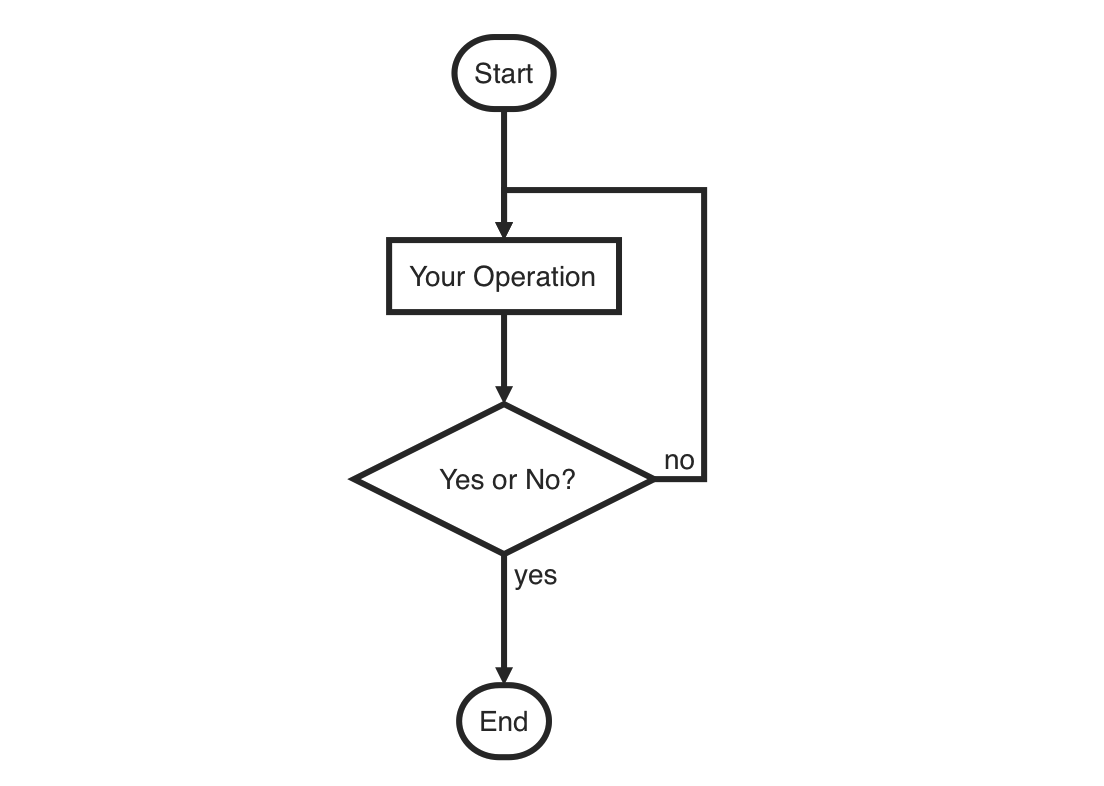

Flowcharts
This feature uses flowchart.js, which turns the following code block into a rendered diagram:
“`flow
st=>start: Start
op=>operation: Your Operation
cond=>condition: Yes or No?
e=>end
st->op->cond
cond(yes)->e
cond(no)->op
“`
Mermaid
Typora also has integration with mermaid, which supports sequence diagrams, flowcharts, Gantt charts, class and state diagrams, and pie charts.
Sequence Diagrams
For more details see these instructions.
“`mermaid
%% Example of sequence diagram
sequenceDiagram
Alice->>Bob: Hello Bob, how are you?
alt is sick
Bob->>Alice: Not so good 🙁
else is well
Bob->>Alice: Feeling fresh like a daisy
end
opt Extra response
Bob->>Alice: Thanks for asking
end
“`

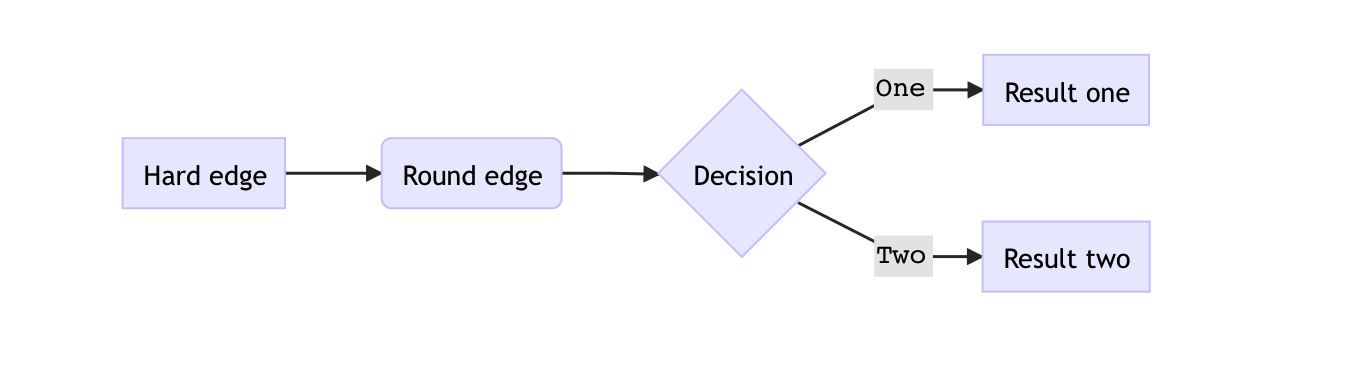

Flowcharts
For more details see these instructions.
“`mermaid
graph LR
A[Hard edge] –>B(Round edge)
B –> C{Decision}
C –>|One| D[Result one]
C –>|Two| E[Result two]
“`

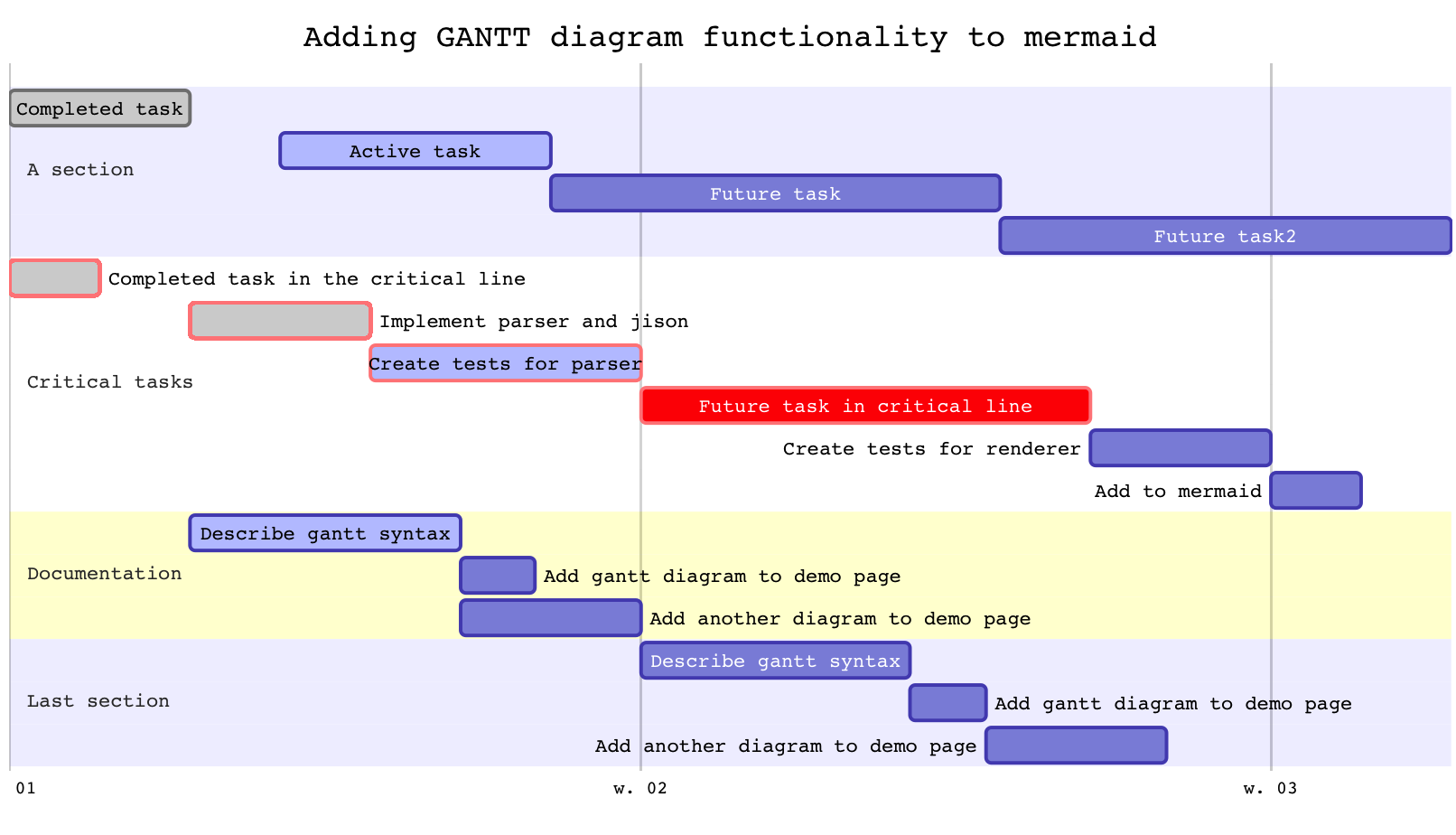

Gantt Charts
For more details see these instructions.
“`mermaid
%% Example with selection of syntaxes
gantt
dateFormat YYYY-MM-DD
title Adding GANTT diagram functionality to mermaid
section A section
Completed task :done, des1, 2014-01-06,2014-01-08
Active task :active, des2, 2014-01-09, 3d
Future task : des3, after des2, 5d
Future task2 : des4, after des3, 5d
section Critical tasks
Completed task in the critical line :crit, done, 2014-01-06,24h
Implement parser and jison :crit, done, after des1, 2d
Create tests for parser :crit, active, 3d
Future task in critical line :crit, 5d
Create tests for renderer :2d
Add to mermaid :1d
section Documentation
Describe gantt syntax :active, a1, after des1, 3d
Add gantt diagram to demo page :after a1 , 20h
Add another diagram to demo page :doc1, after a1 , 48h
section Last section
Describe gantt syntax :after doc1, 3d
Add gantt diagram to demo page : 20h
Add another diagram to demo page : 48h
“`

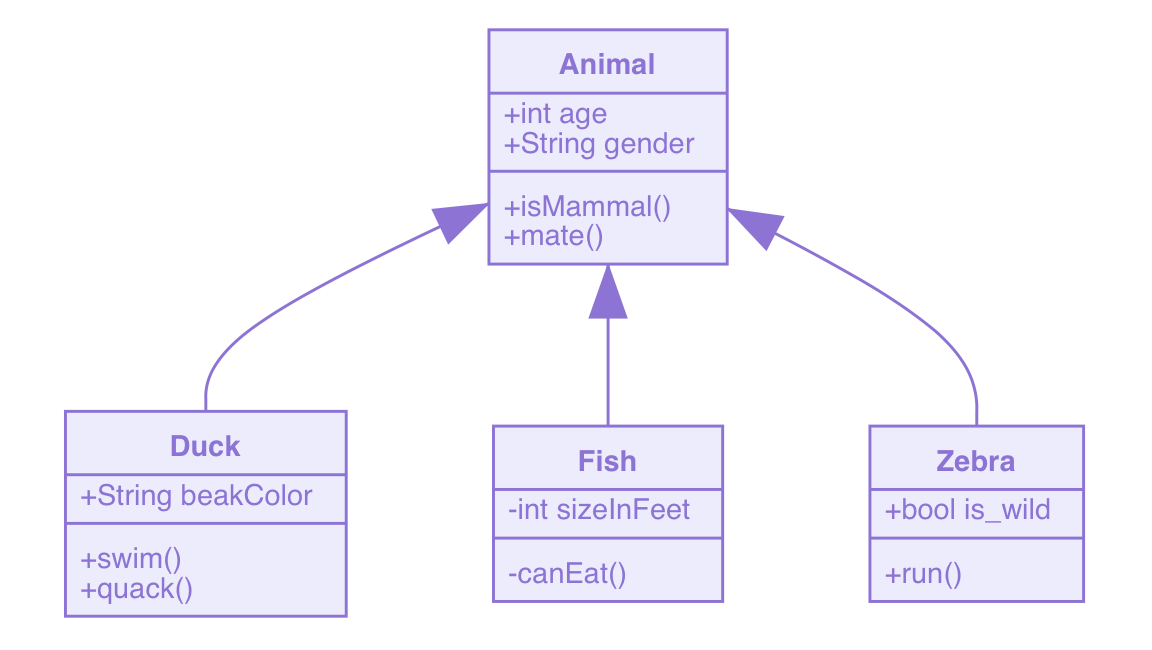

Class Diagrams
For more details see these instructions.
“`mermaid
classDiagram
Animal <|– Duck
Animal <|– Fish
Animal <|– Zebra
Animal : +int age
Animal : +String gender
Animal: +isMammal()
Animal: +mate()
class Duck{
+String beakColor
+swim()
+quack()
}
class Fish{
-int sizeInFeet
-canEat()
}
class Zebra{
+bool is_wild
+run()
}
“`

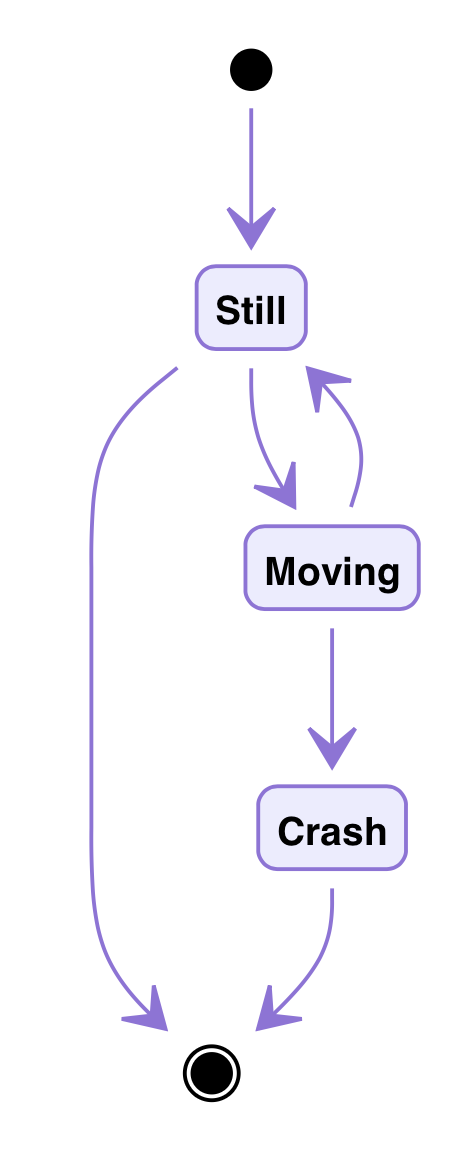

State Diagrams
For more details see these instructions.
“`mermaid
stateDiagram
[*] –> Still
Still –> [*]
Still –> Moving
Moving –> Still
Moving –> Crash
Crash –> [*]
“`

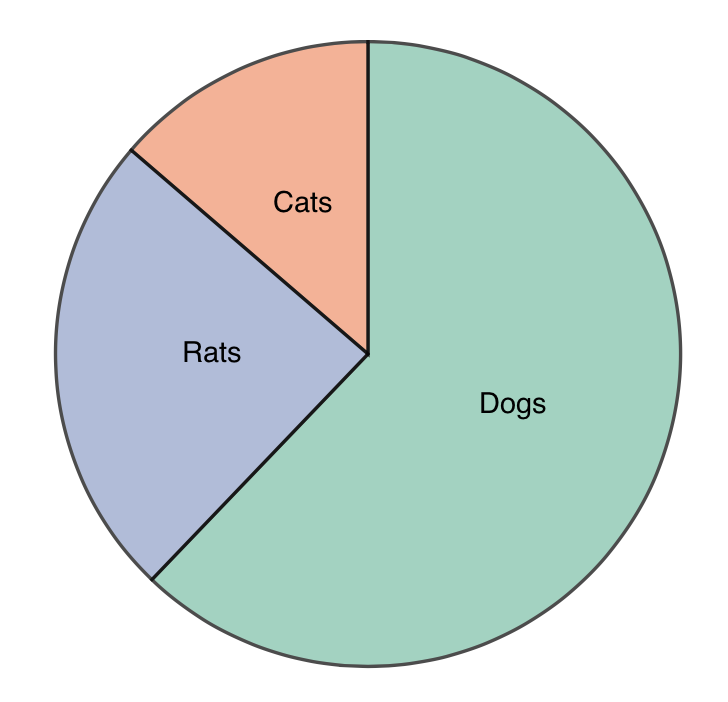

Pie Charts
“`mermaid
pie
title Pie Chart
"Dogs" : 386
"Cats" : 85
"Rats" : 150
“`
